Products
Wafer Type Butterfly Valve
Size: 2"-24"(DN40O-DN1200)
Valve Design: API609,MSS SP-67
Face To Face: APl 609,MsS SP-67,DIN3202,BS EN558-1Pressure Test: API 598
Flange Drilling: ANSI B16.1 class150,BS4504 PN10/PN16, DIN2501 PN10/PN16Top Flange : lSO5211
Standard Test:
Body Test:1.5 times the working pressure with water. This test is peromed afer talve assemby and with isc in half osition open ,it scalled as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Product Details
Wafer Type Butterfly Valve is a type of valve that is designed to regulate the flow of fluids in a pipeline. The valve disc is designed to rotate around the shaft, allowing or blocking the flow of fluids in the pipeline.
Use the Wafer Type Butterfly Valve have the following benefits:
1. High Efficiency: The valve is designed to provide high flow rates, which makes it highly efficient in regulating the flow of fluids in a pipeline.
2. Easy Installation: The valve is lightweight and compact, making it easy to install in tight spaces. It can be installed between flanges without any additional support.
3. Cost-Effective: The valve is cost-effective compared to other types of valves, making it an ideal choice for industries that want to save on costs.
4. Low Maintenance: The valve requires minimal maintenance, which helps to reduce downtime and maintenance costs.
5. Durability: The valve is designed to withstand harsh environments and extreme temperatures, making it highly durable and long-lasting.
At QINGDAO FLUIDO, we are committed to providing our clients with high-quality valves that meet their specific needs. Contact us today to learn more about our Wafer Type Butterfly Valve and how it can benefit your industry.

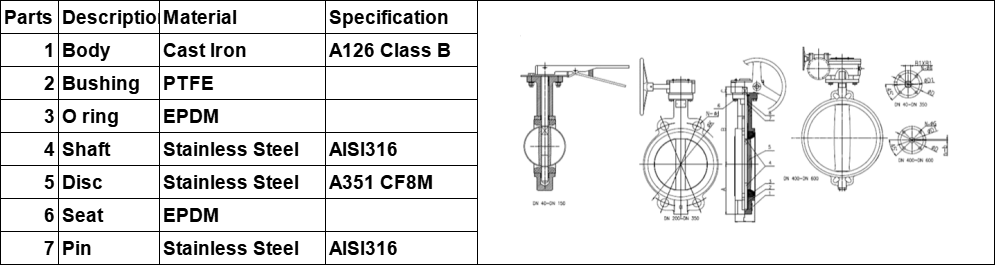

Material List

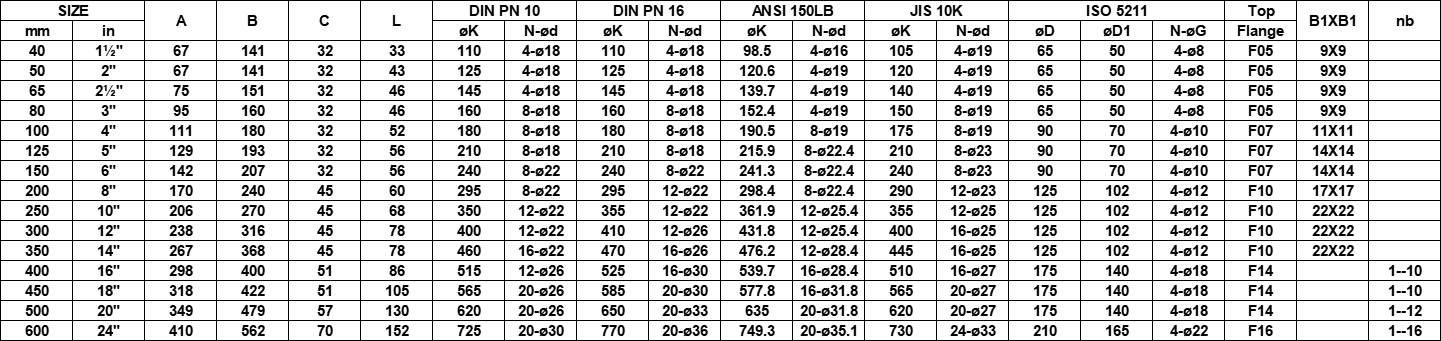

Size List
