Wafer Butterfly Valve PTFE Seat
Size Range: 2~8"(DN50~DN200）
Pressure: PN10, PN16, Class125
Body Materials: Ductile Iron, Stainless steel, WCB
Seat Materials: PTFE
Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
Stem Materials: SS416, SS304, SS316
Product Details
PTFE Seat Wafer Butterfly Valve is a type of valve used to regulate the flow of fluids in a pipeline system. This valve is designed with a PTFE (Polytetrafluoroethylene) seat, which is a thermoplastic material known for its chemical resistance, non-stick properties, and high temperature tolerance. The valve is designed with a PTFE seat, which provides a tight seal between the disc and the valve body, preventing leakage. The PTFE seat is also resistant to corrosion and erosion, making it suitable for use in chemical, pharmaceutical, and food processing industries environments.

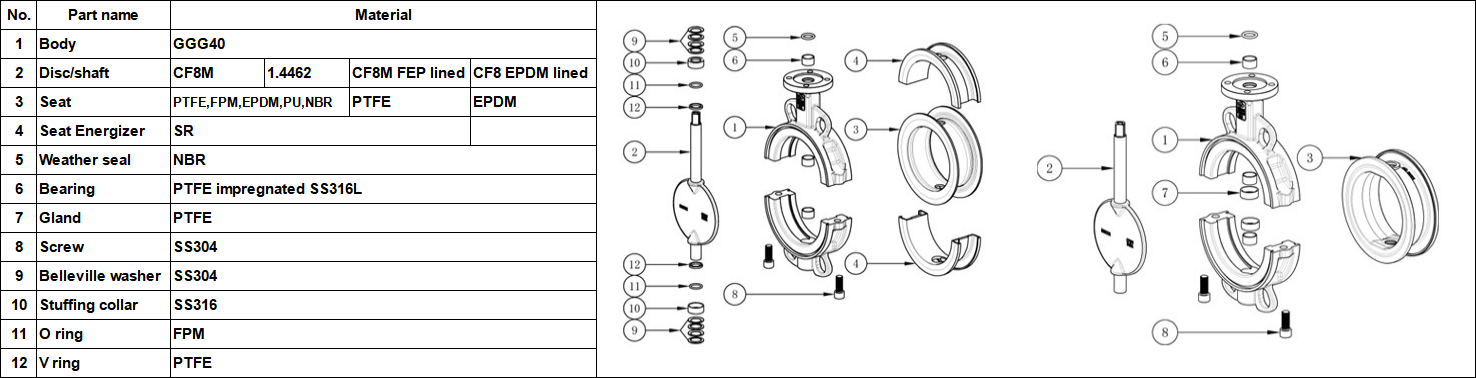

PARTS LIST AND MATERIAL SPECIFICATION
DEMENSION AND WEIGHT SPECIFICATION
