Wafer Butterfly Valve With pneumatic actuator
Product Description
Size: 2"-24"/DN50-DN600
Pressure: 5K/10K/150LB
Actuator: Double acting and single acting Pneumatic Actuator
End Flange: ANSI, DIN, BS, ISO
Body Materials: CI/DI/WCB/CF3/ CF3M/CF8/ CF8M
Disc: DI/WCB/CF3/ CF3M/CF8/CF8M/ C954
Stem: 45#/410/ 2Cr13/Cr13/304/316stainless steel
Seat:Hypalon/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/PTFE
Suitable Temperature: -45C to 230º C
Product Details

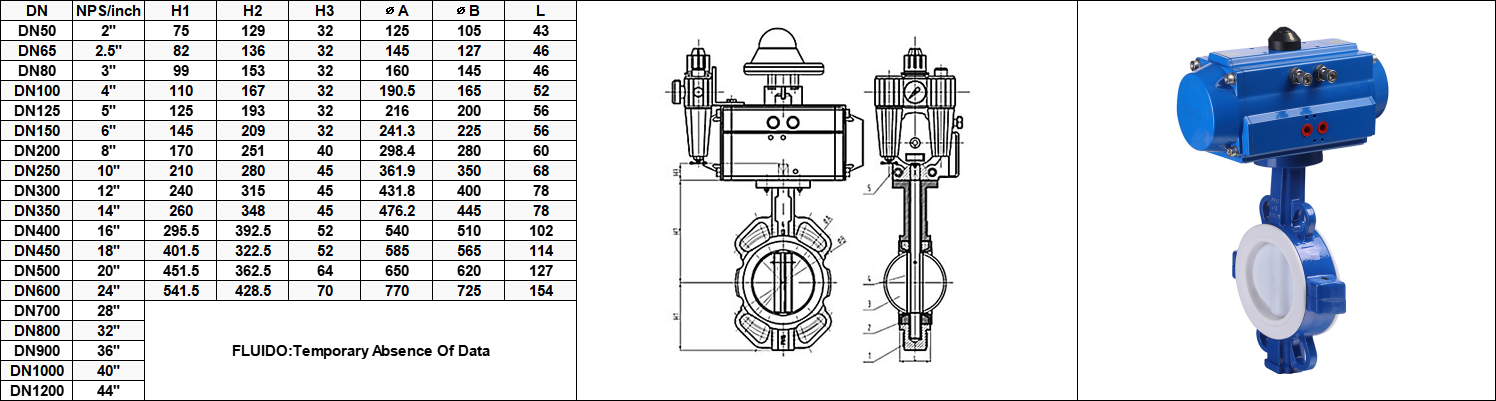

Wafer Butterfly Valve With pneumatic actuator
