Lug Butterfly Valve with one Stem No-pin
Product Description
Size Range: 2~8"(DN50~DN200)
Pressure: PN10,PN16,Class125
Body Materials: Cast lron,Ductile lron, WCB, Stainless Steel, Bronze
Seat Materials: NBR,EPDM,VITON,PTFE
Disc Materials: Ductile lron, WCB,CF8,CF8M,Al-bronze C958
Stem Materials: SS416,SS304,SS316

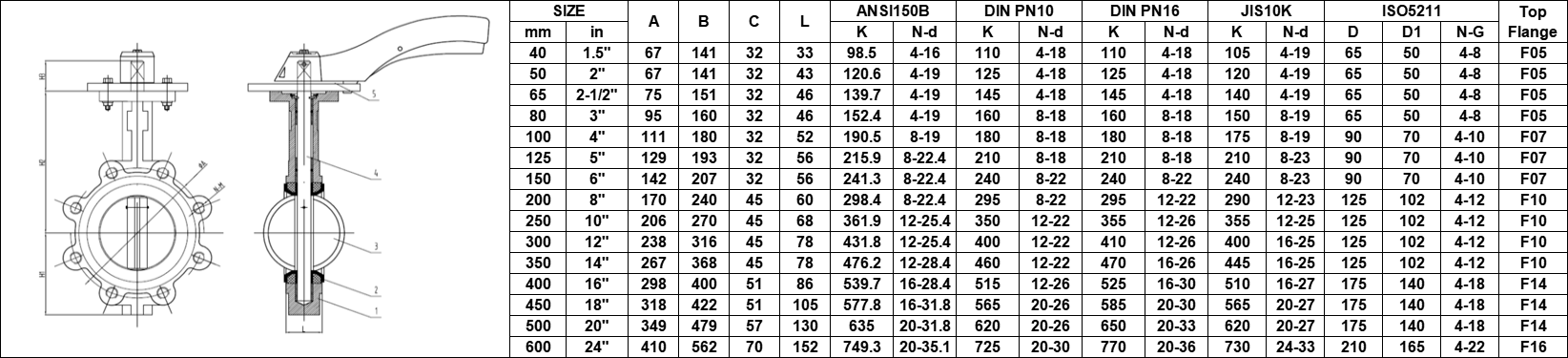

Product Details
Adoptive standards:
Valve Design: API 609,MSS SP-67
Face To Face:APl 609,MSS SP-67，DIN3202,BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125,BS4504 PN10/PN16,DIN2501 PN10/PN16
Top Flange: ISO5211
