Lug Butterfly Valve with double Stem
Size Range: 2~8"(DN50~DN200）
Pressure: PN10, PN16, Class125
Body Materials: Cast Iron, Ductile Iron
Seat Materials: NBR, EPDM, VITON, PTFE
Disc Materials: Ductile Iron, WCB, CF8, CF8M, Al-bronze C958
Stem Materials: SS416, SS304, SS316
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211 or according to your drawing
Product Details
The Double Stem Lug Butterfly Valve is one model of the lug butterfly valves that work by controlling the flow of fluids, gases and slurries through the use of a disc that rotates around a central axis.
One of the main advantages of Double Stem Lug Butterfly Valve is their ease of maintenance. The construction of Double Stem Lug Butterfly Valve consists of two stems attached to a disc. This design makes it easy to maintain and replace the stem without having to remove the entire valve from the pipeline. In addition, the double stem design makes it easier to replace the stem when it is damaged or worn, which helps extend the life of the valve.
If you are interested in learning more about Double Stem Lug Butterfly Valve or want have a offer, please contact Qingdao Fluido. our team of experts can help you select the right valve for your needs and provide you with the technical support you need.

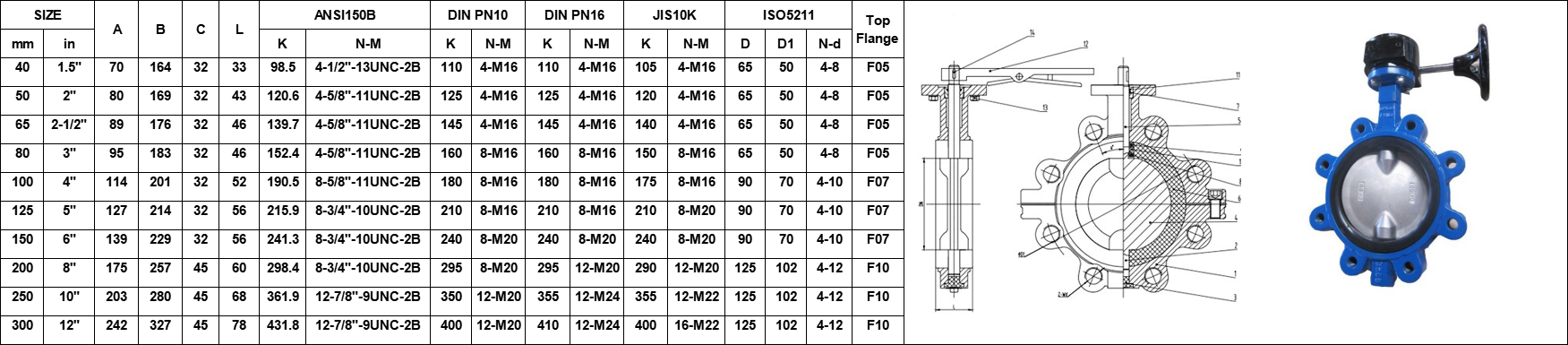

Lug Butterfly Valve with double Stem Demension
