High Temperature Pneumatic Three-Eccentric Butterfly Valve
Product Description
Size Range: DN5O-DN2000
Pressure: PN16/25/40/63
Body Materials : WCB/CF3/CF3M/CF8/CF8M
Seat Materials : CR/304/316
Disc Materials: WCB/CF3/CF3M/CF8/CF8M
Stem Materials: 2Cr13/Cr13/304/316
Product Details
Features:
Three Eccentric Design
Stainless Steel sealing, good sealing performance with both low temperature and high temperature, anti-corrosive, long life
Sealing seat anti-frictional and long life
Bi-Directional
Fire safe Design
Low Friction Body Seat
Adoptive Standards:
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

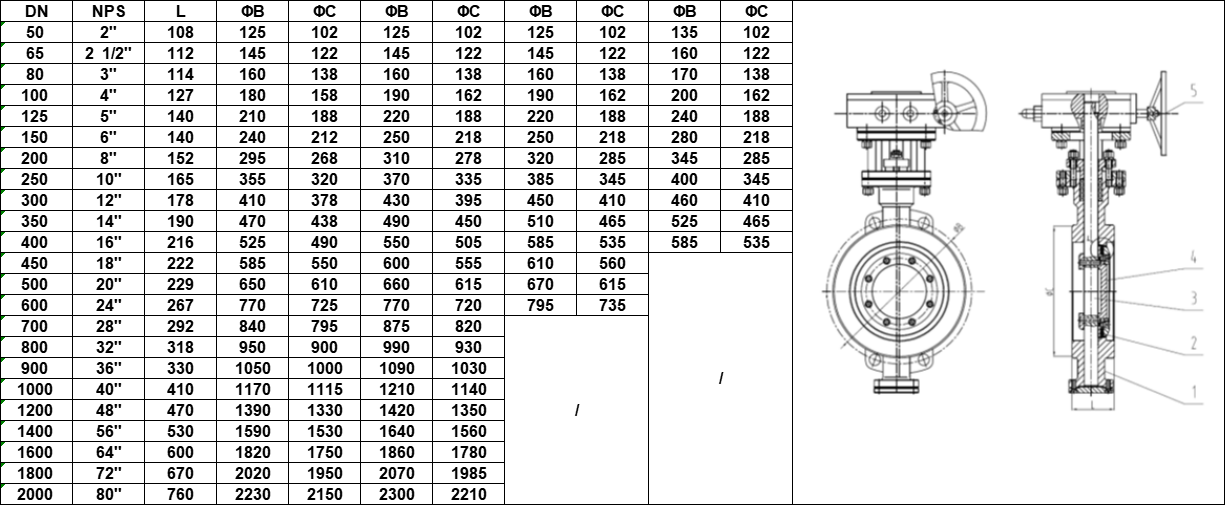

Dimension:
