Introduction
The triple eccentric butterfly valve belongs to the eccentric butterfly valve family. Like the double eccentric butterfly valve, the shaft of the disc is offset from the centerline of the disc and the centerline of the bore.

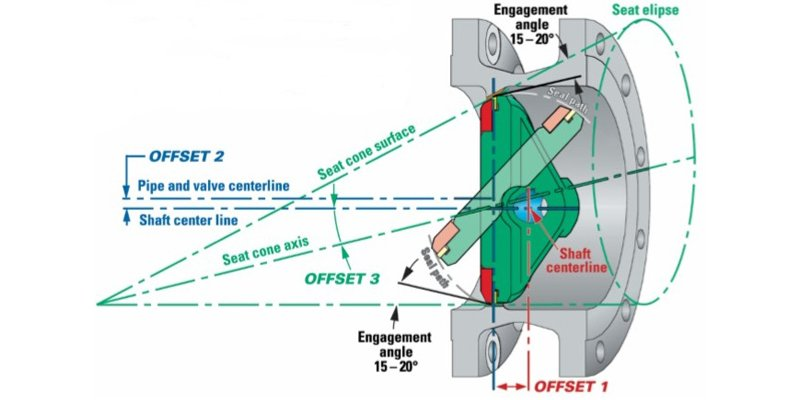

And the third offset refers to the design in the axis of the seat cone angle: the sealing components of the triple eccentric butterfly valve are designed into an offset conical profile resulting in a right-angled cone. Thanks to this unique design, the contact is only made at the final point of closure with the 90◦ angle acting as a mechanical stop.

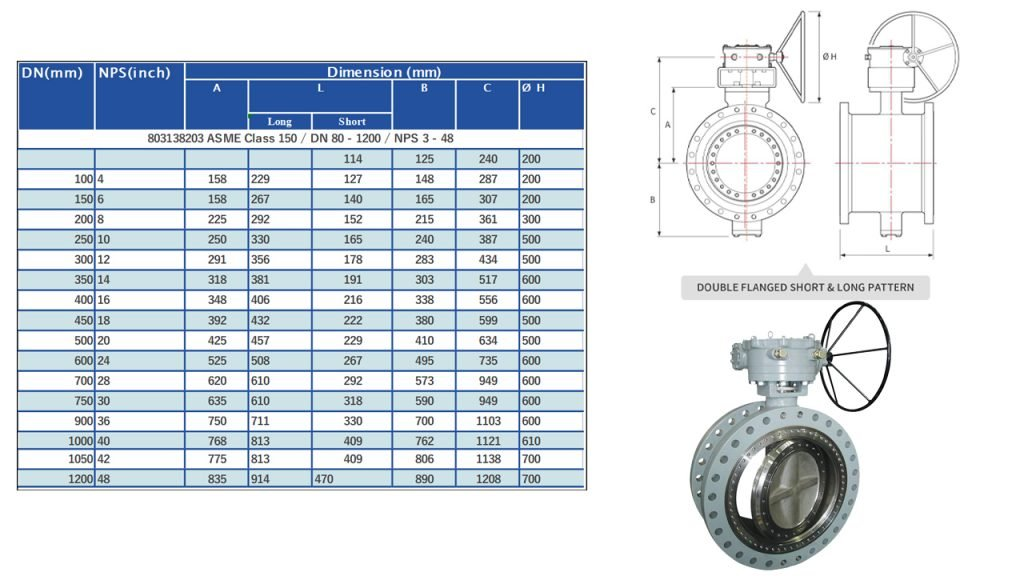

Specifications

We also provide other sizes according to your demands


Applications

Compared with the double eccentric butterfly valve, the triple eccentric butterfly valve offers a bubble-tight shut-off effect: in particular for applications involving harsh chemicals or media with small particles prone to clogging valves and pipelines. Generally, the triple eccentric butterfly valve is mainly used for the following applications:

Power generation– This type of triple offset butterfly valve is equipped with a metal seat. As the metal seat butterfly valve is resistant to high temperatures, it’s an ideal option for power generation options, especially for energy power plants.

Chemical Plant- As we mentioned before, this triple eccentric butterfly valve creates a bubble-tight shut-off, which prevents the valve from being clogged by the particles in the media. For this reason, the triple eccentric butterfly valve is ideal for chemical liquid transmission. Besides, in this metal butterfly valve, there are no elastomers or other materials susceptible to corrosion. In this way, the triple eccentric butterfly valve can stand the chemical contact and for this reason, it’s an ideal choice for the refinery industry.

Water treatment plant-The triple eccentric butterfly valve is even the best choice for water treatment. As the water treatment is usually under high pressure, the traditional concentric o double eccentric butterfly valves might yield to the pressure causing leakage. The connected offsets and the geometric design of this triple eccentric butterfly valve work harmoniously to open and close instead of making the seat to withstand all the pressure.



Advantages of our products

Zero Leakage—Our triple eccentric butterfly valve is equipped with a metal seat. This metal seat butterfly valve means metal-to-metal sealing, which ensures tight shut-off and zero-leakage performance.

Long service life—Our triple eccentric butterfly valve is characterized by a precisely designed conical sealing, which ensures that the metal sealing components are never in contact until the final closing. This design reduces the friction between the components and extends vastly the service life.

Less maintenance work—Thanks to the conical sealing design, there are no cavities between sealing components, which means no clogging and less maintenance work.
