En13789 Cast Iron Steam Bellow Seal Water Control Globe Valve
Design and Manufacture Conform to DIN EN 13789
Flange dimensions Conform to EN1092-2 PN16
Face to Face dimensions Conform to EN558-1 list 1
Testing Conform to EN12266-1
Product Details
En13789 Cast Iron Steam Bellow Seal Water Control Globe Valve:
Bolted bonnet globe valve, with bronze trim.Can be supplied screw lift or screw down non-return.Size: 25mm to 300mm
Connection: Flanged-BS4504 PN10/16(other drillings on request)Fluids: Air-Inert Gas-Oil-Steam-Water
Operation: Handwheel
1. This cast iron bolted cover globe valve is ideally suited for secondary isolation duty. This valave provides a lead-tight shut off with thecapabilty of being used partially open to regulate flow.
A further option allows this vave to be modfied by ourselves to screw down non return, thus adding the feature of a check valve at a fractionfo the cost.
2.Features and benefits
(1). Specifications to BS EN 12789 formally BS 5152.
(2).Bronze trim.
(3).Bolted bonnet.
(4).Rising stem.
(5).Screw lift or SDNR pattern.

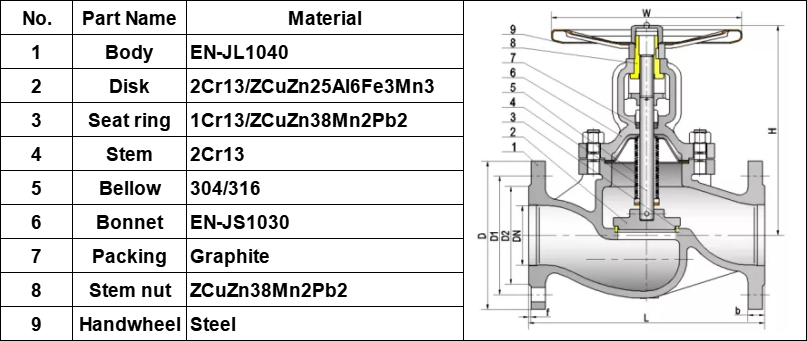

Material:

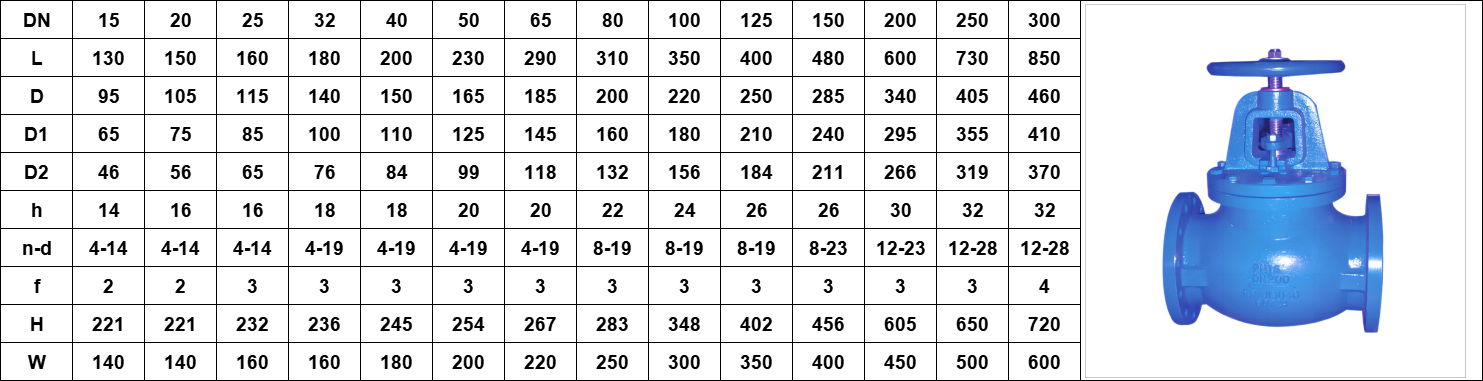

Dimension:
