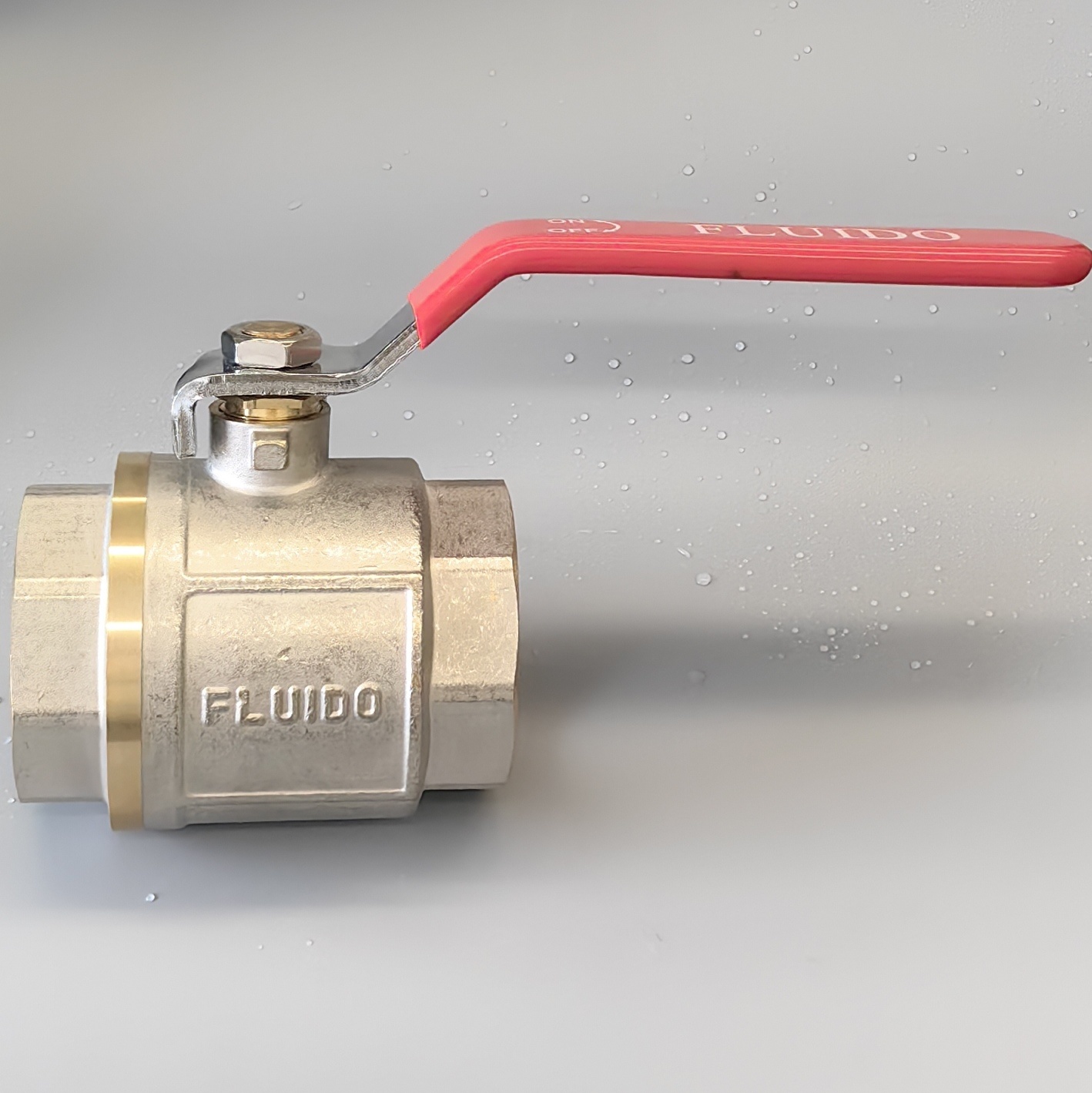

Brass Threaded Ball Valve
Name:Brass Threaded Ball Valve
Size Range: 1/2"-2"/DN15-50
Pressure: PN16/25
Working Temperature： -10℃～120℃
Suitable Medium： Water, Steam, Oil, Nitric Acid, Acetic Acid, etc
Body Materials: Brass
Seat Materials: PTFE
Stem Materials: Brass
Cover materials: Brass HPb59-1
Body：Brass
Ball：Brass
Seat：PTFE
Application： Municipal construction, water conservancy projects, electricity, water supply and drainage, water treatment, petroleum
Product Details
1.Material meet the requirements of the national standards. Mill test report can be provided.
2.High sealing precision, no need to use sealing oil, valve cavity is clean and hygienic.
3.High quality lead brass material and hot forging process caneffectively prevert defects suchas pores,shrinkage roles, pirholes, etc.
4.Eachvalve must be tested in accordance withnational standards. Unqualified products will never be shipped
5.Two years warranty, pay two back if one.Any quality problem ofthe product itself, we will pay without conditions.

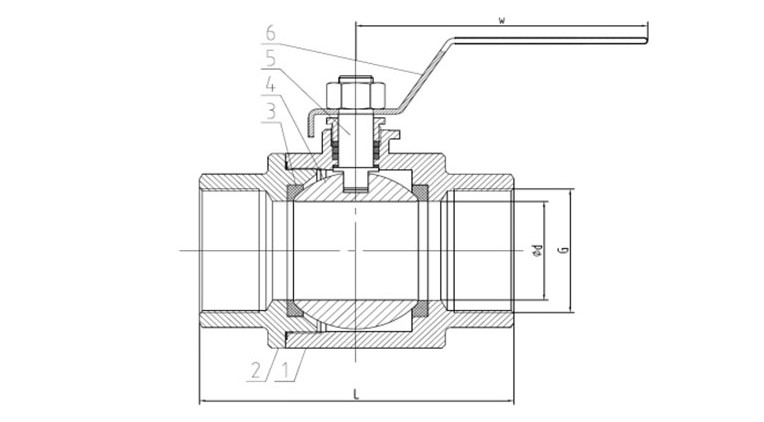

| Name | 1-Body | 2-Bonnet | 3-Seat | 4-Ball | 5-Shaft | 6-Lever |
| Material | Brass HPb59-1 | Brass HPb59-1 | PTFE | Brass HPb57-3 | Brass | Q235 |
| DN | NPS/IN | G | L | W |
| 15 | 1/2'' | 1/2 | 51 | 90.7 |
| 20 | 3/4'' | 3/4 | 57 | 90.7 |
| 25 | 1'' | 1 | 69.8 | 110.7 |
| 32 | 1 1/4'' | 1-1/4 | 81 | 124 |
| 40 | 1 1/2'' | 1 1/2 | 92 | 124 |
| 50 | 2'' | 2 | 108 | 153 |
