Basket Strainer with Flange Type
Product Description
Product Details
The filter is to remove samll solid substance in liquid containing, so it can protect compressors, pumps and other equipments and instruments. It is widely used in petroleum, chemical industry, chemical fiber, medicine, food and other industries.
Main technical parameters
It consists of shell, cover, filter trim, mesh, bolts. The total mesh area is 3 to 4 times than the entrance channel. The pressure difference is 0.05 to 0.15, it deponds on the design.

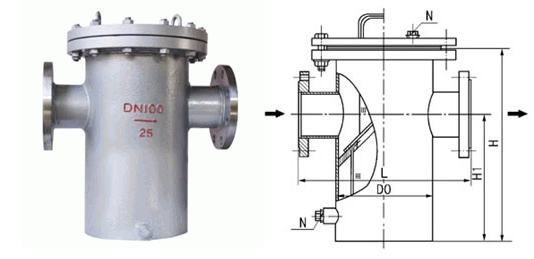

Flanged straight through basket filter
| DN | L | H | H1 | D0 | N | DN | L | H | H1 | D0 | N |
| 15 | 180 | 260 | 160 | 76 | Rc3/4 | 80 | 340 | 400 | 250 | 159 | Rc3/4 |
| 20 | 180 | 260 | 160 | 76 | 100 | 400 | 470 | 300 | 219 | ||
| 25 | 180 | 260 | 160 | 76 | 125 | 480 | 550 | 360 | 273 | ||
| 32 | 200 | 270 | 160 | 76 | 150 | 500 | 630 | 420 | 273 | ||
| 40 | 260 | 300 | 170 | 108 | 200 | 560 | 780 | 530 | 325 | ||
| 50 | 260 | 300 | 170 | 108 | 250 | 660 | 930 | 640 | 426 | M20 X 1.5 | |
| 65 | 330 | 360 | 210 | 133 | 750 | 1200 | 840 | 478 | 65 |

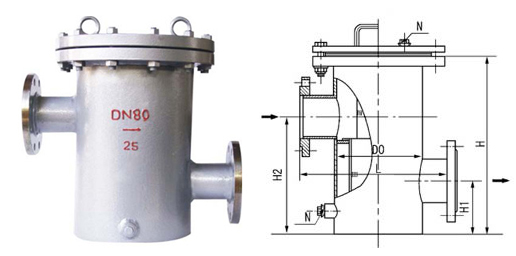

Flanged non-straight through basket filter
| DN | L | H | H1 | H2 | D0 | N | DN | L | H | H1 | H2 | D0 | N |
| 25 | 180 | 280 | 110 | 180 | 76 | Rc3/4 | 100 | 400 | 550 | 200 | 390 | 219 | Rc3/4 |
| 32 | 200 | 285 | 110 | 180 | 76 | 125 | 480 | 630 | 260 | 450 | 273 | ||
| 40 | 260 | 340 | 120 | 220 | 108 | 150 | 500 | 720 | 310 | 530 | 273 | ||
| 50 | 260 | 340 | 120 | 220 | 108 | 220 | 560 | 900 | 390 | 670 | 273 | ||
| 65 | 330 | 400 | 160 | 270 | 133 | 250 | 660 | 1070 | 480 | 800 | 426 | M20 X 1.5 | |
| 80 | 340 | 460 | 480 | 320 | 159 | 300 | 750 | 1360 | 640 | 1040 | 478 |
